CINELLI WYSIWYG Time Trial TT Bike Frameset
CINELLI WYSIWYG Time Trial TT Bike Frameset
Couldn't load pickup availability

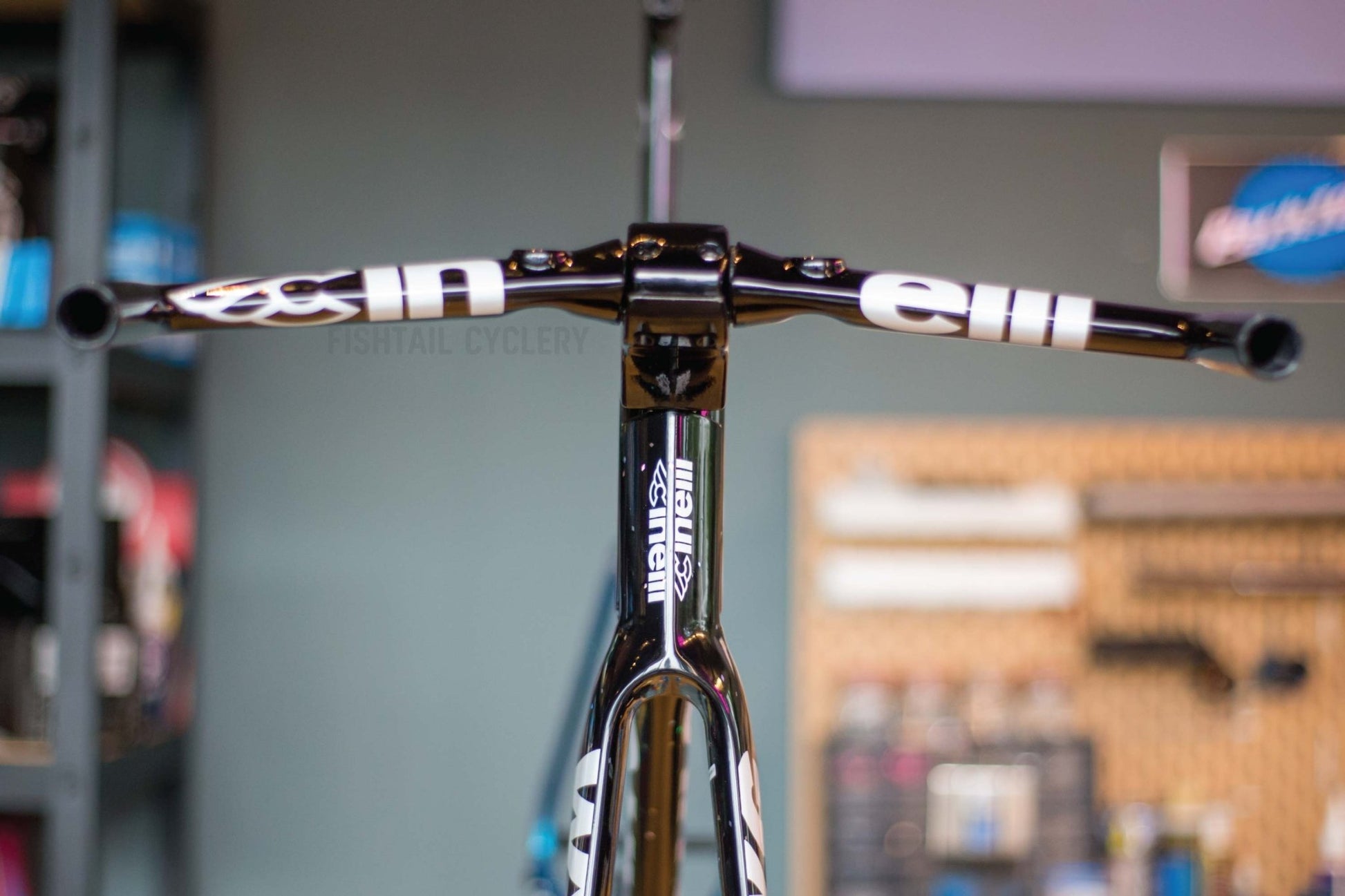

The CINELLI WYSIWYG Time Trial TT Bike Frameset is on sale as a frame kit (complete with handlebar, extensions, seat post, stem and front brake).
Kindly drop us an inquiry if you'd prefer the CINELLI WYSIWYG Time Trial TT Bike Frameset as a complete bicycle fitted with Ultegra Di2.
The CINELLI WYSIWYG Time Trial TT Bike Frameset (What You See Is What You Get) is a long time classic in Cinelli Triathlon and Time Trial frame concept.

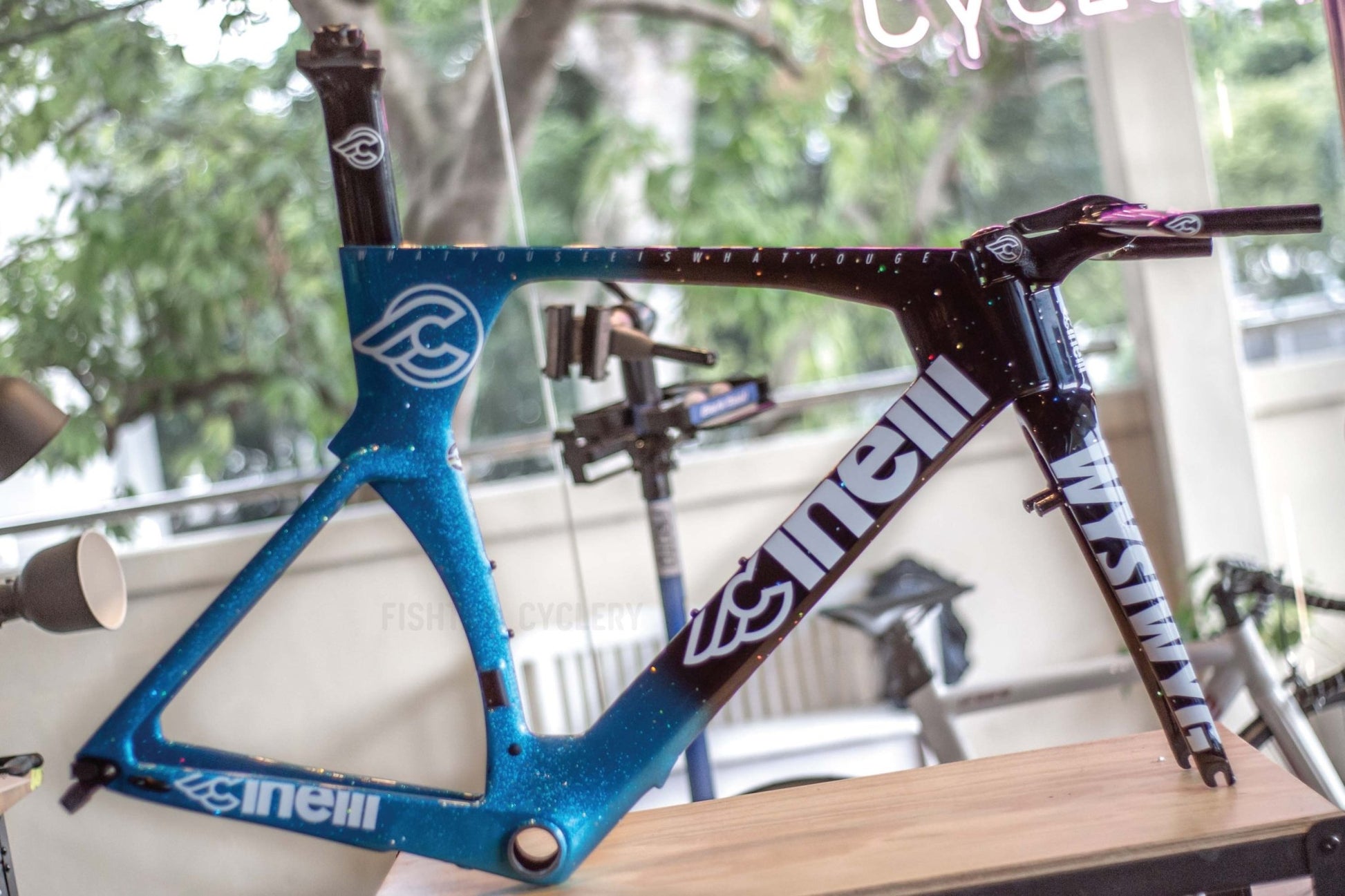

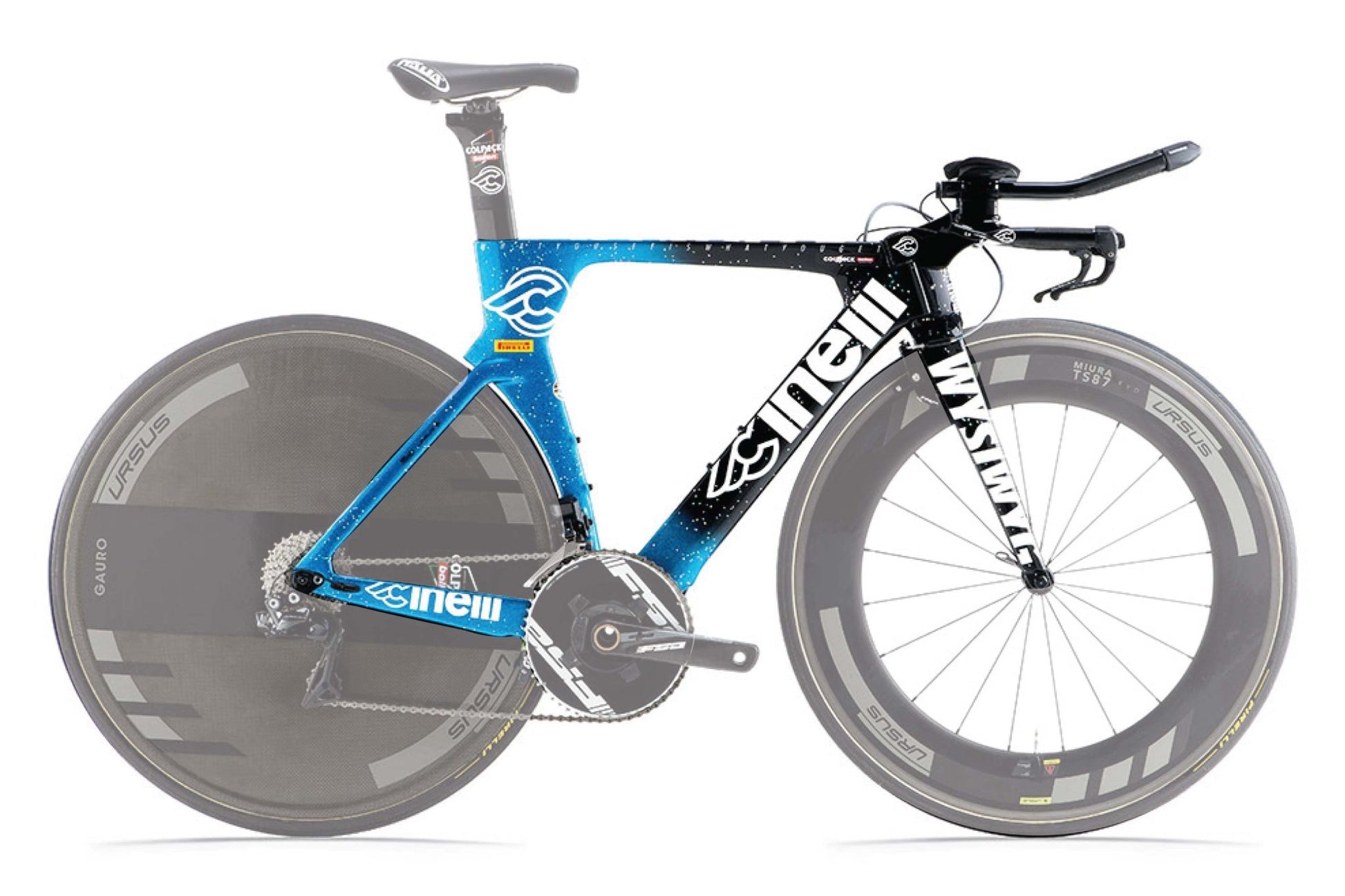

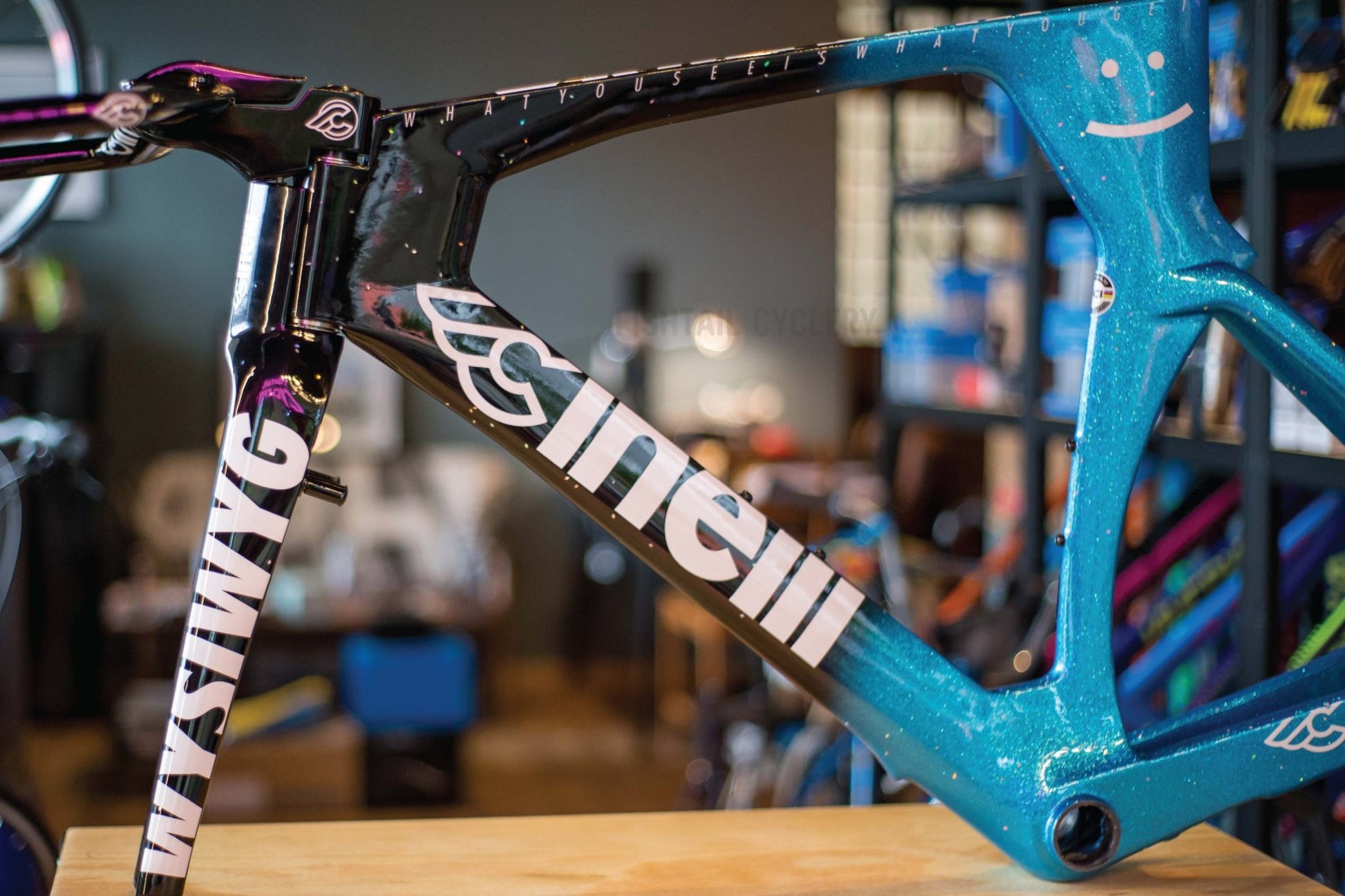

The brand new CINELLI WYSIWYG Time Trial TT Bike Frameset, in Team Colpack Ballan livery, is a Time Trial machine made with COLUMBUS carbon monocoque.

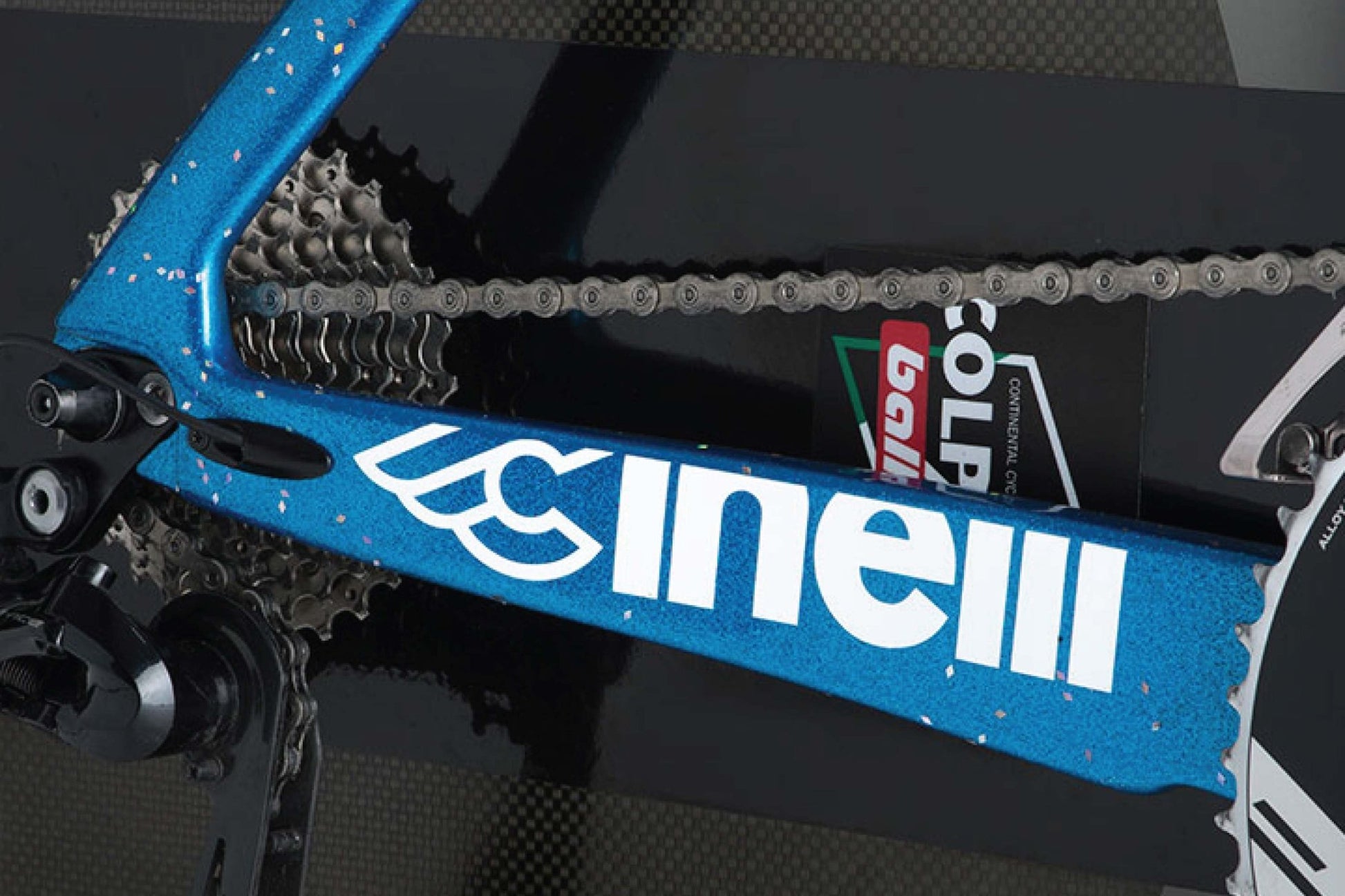

The super-reactive geometry with ultra-short chain stays (395mm in all sizes) for added stiffness address the maximum performance and speed against time, keeping the athlete in the most compact and aerodynamic position on the saddle. It is the TT frame for experienced riders.
Specifications of the CINELLI WYSIWYG Time Trial TT Bike Frameset :
|
SIZES XS (45) - S (49) - M (52) - L (54) - XL (56) |
FRAME COLUMBUS Carbon Monocoque |
|
HEADSET IS 42/28.6 | IS 42/30 |

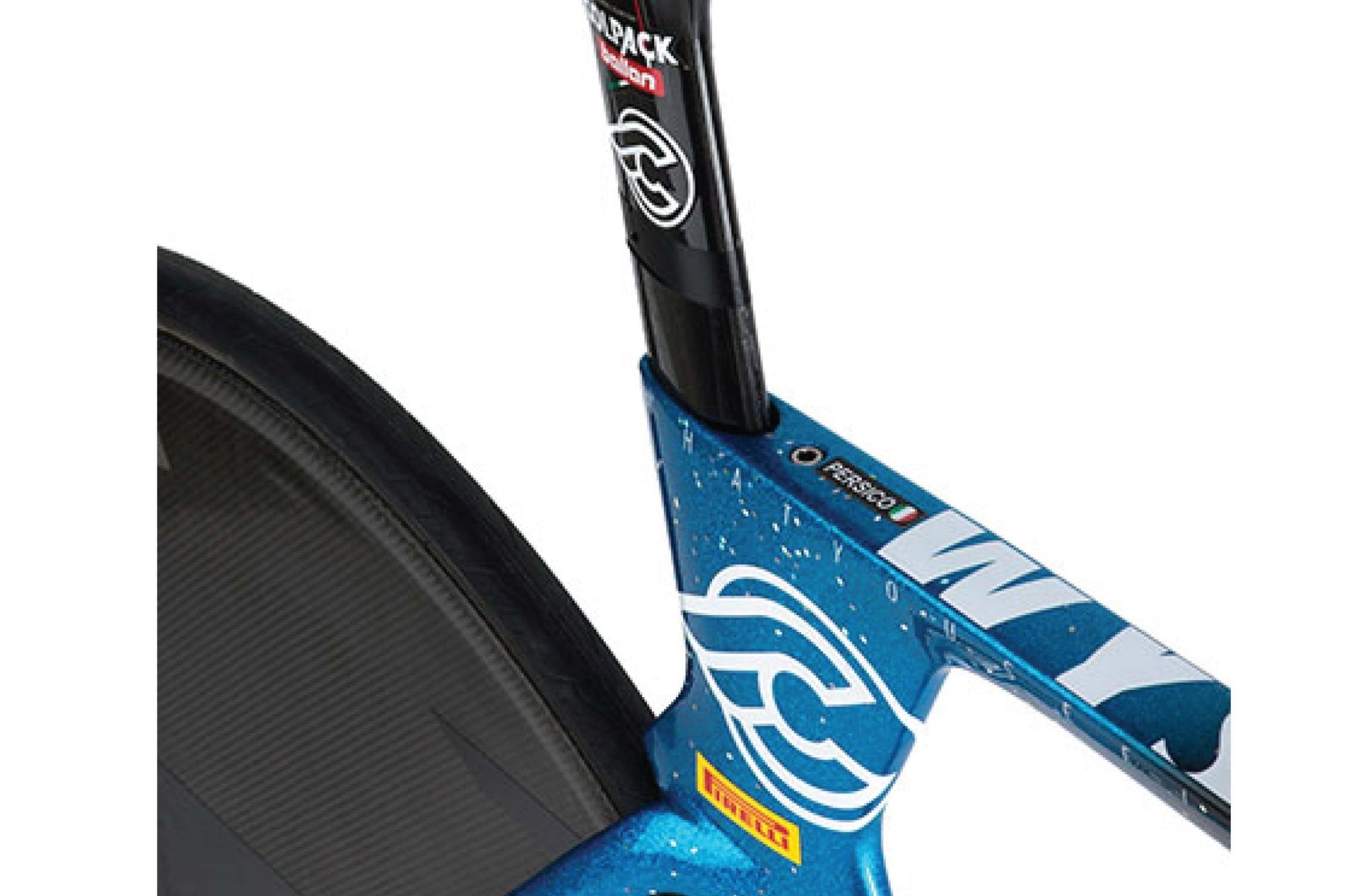

SEAT POST Cinelli Carbon Aero |
|
SEAT CLAMP Integrated |

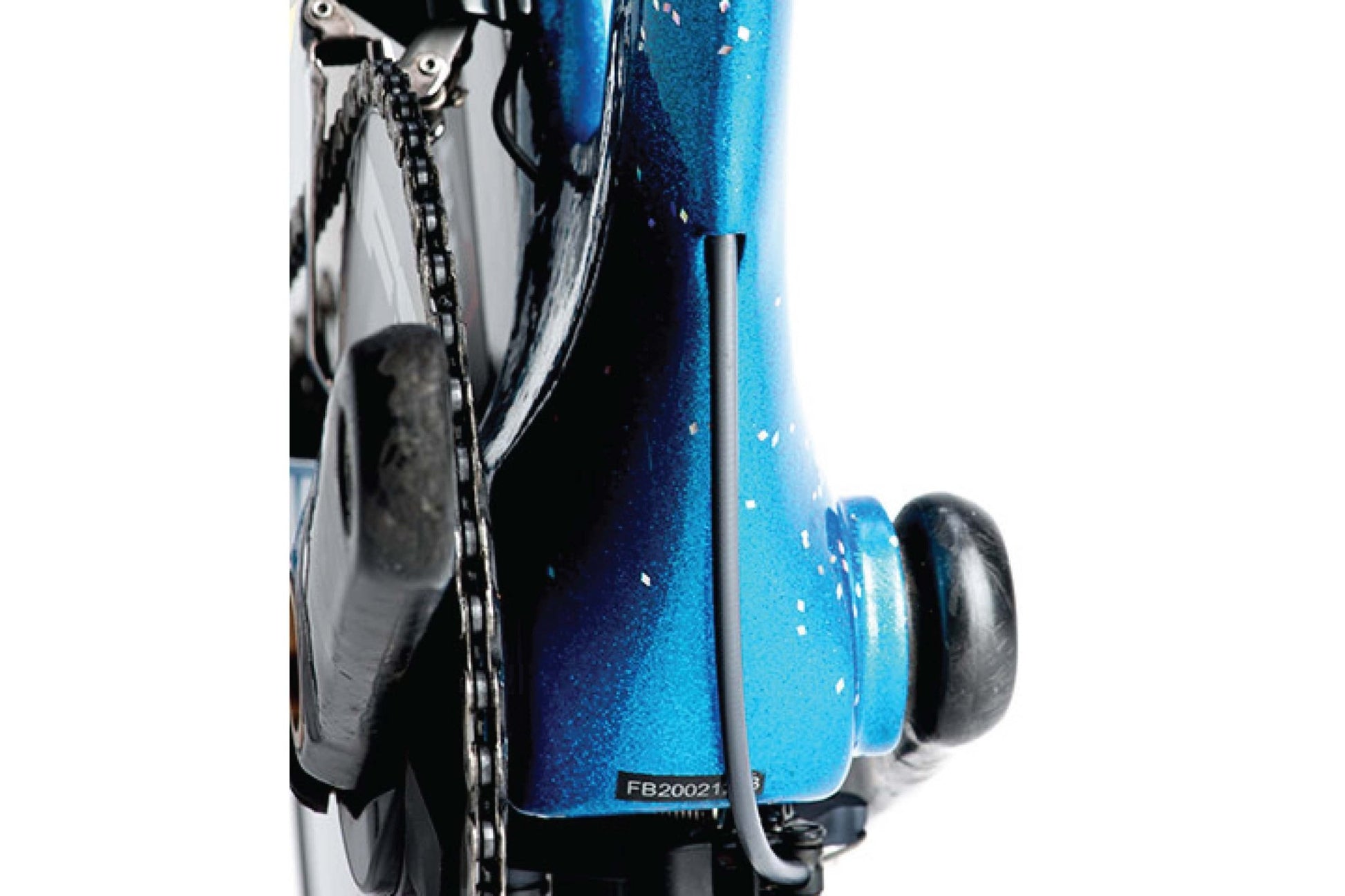

BB STANDARD Pressfit 86,5x41mm |
|
FRONT DERAILLEUR Braze on |

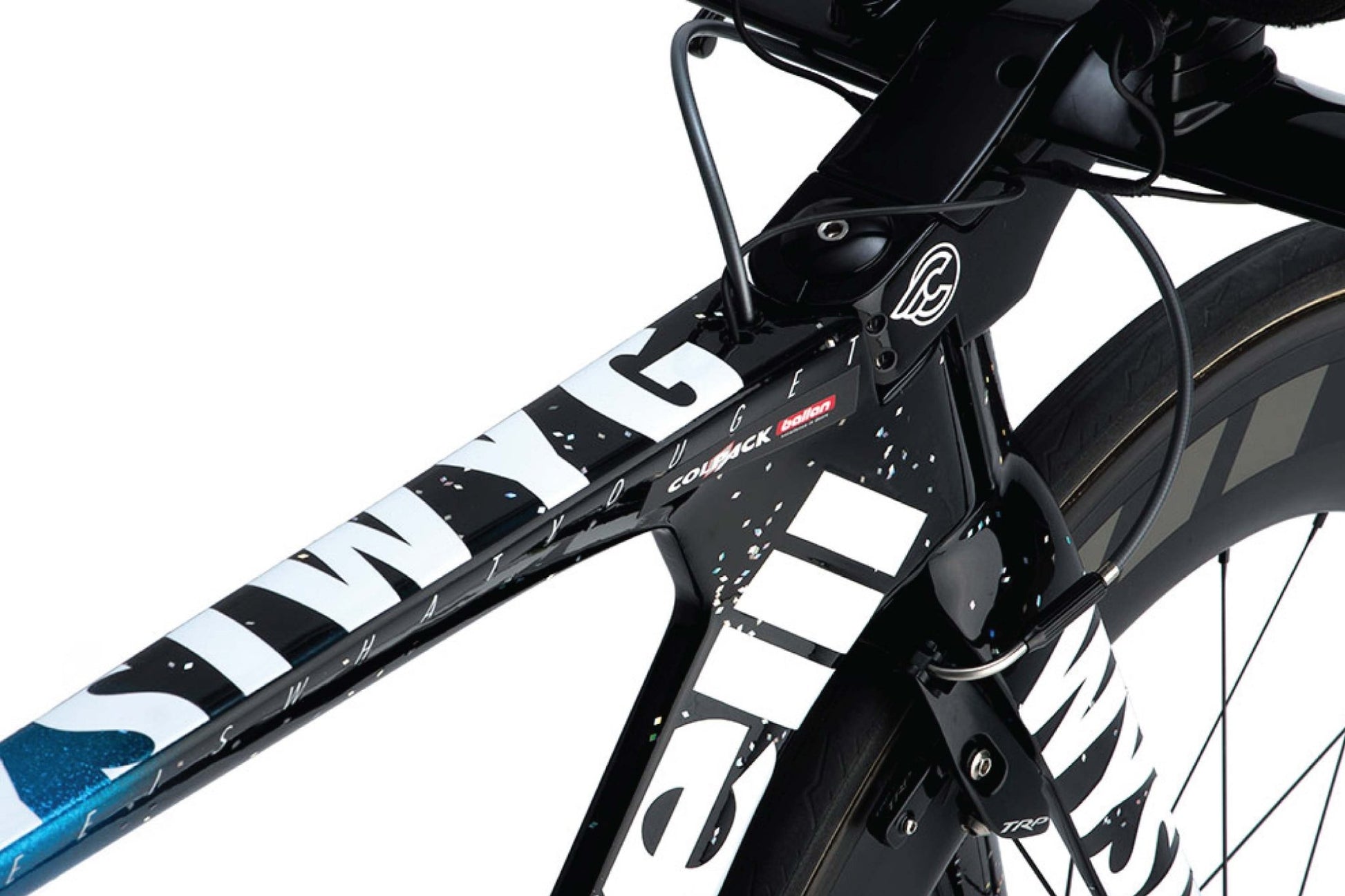

CABLE ROUTING Internal - Di2/EPS compatible |
|
COLOR Team limited |
TIRE CLEARANCE Up to 700x25c |
|
FORK COLUMBUS Disc 1-1/8” Carbon Monocoque |
WEIGHT Frame 1450 g (size M) - Fork 430g (size M) |
|
BRAKES STANDARD Direct mount rim brake |
HUB SPACING Rear 130mm Front 100mm |
|

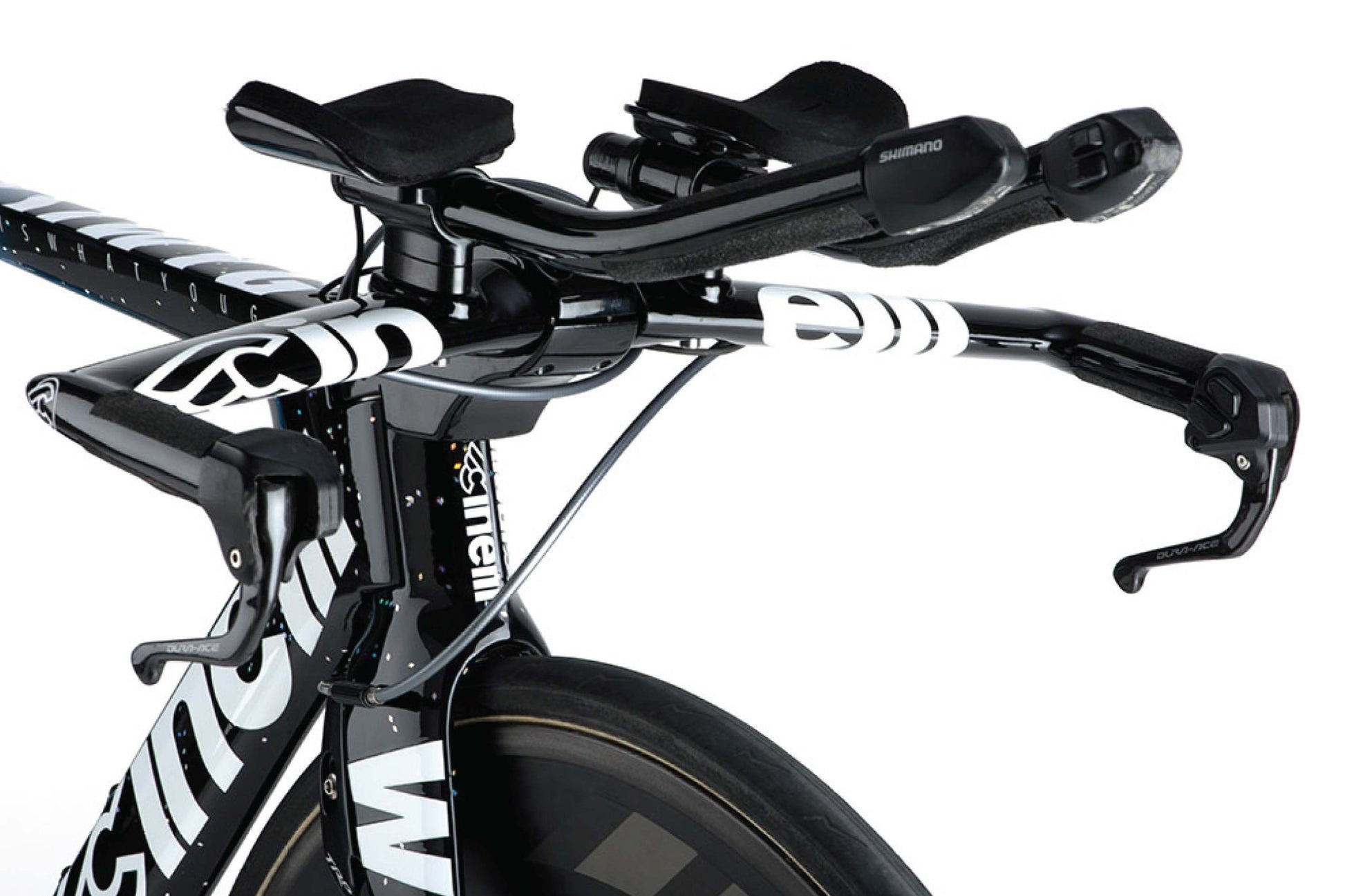

FEATURES Di2-EPS compatible / handlebar, extensions, seatpost, stem, front brake included |
Geometry Diagram of the CINELLI WYSIWYG Time Trial TT Bike Frameset :
Geometry chart of the CINELLI WYSIWYG Time Trial TT Bike Frameset :
| Mark | XS | S | M | L | XL |
|---|---|---|---|---|---|
| S1 | 449 | 528 | 537 | 554 | 571 |
| T1 | 501 | 512 | 533 | 551 | 570 |
| H/T | 61 | 72 | 82 | 99 | 118 |
| a° | 71 | 72.5 | 72.5 | 72.5 | 72.5 |
| b° | 75 | 75 | 75 | 75 | 75 |
| R | 45 | 45 | 45 | 45 | 45 |
| C | 395 | 395 | 395 | 395 | 395 |
| F | 564 | 563 | 584 | 603 | 623 |
| WB | 946 | 946 | 967 | 987 | 1006 |
| E | 75 | 75 | 75 | 75 | 75 |
| Fork | 370 | 370 | 370 | 370 | 370 |
| Stack | 468 | 483 | 493 | 510 | 527 |
| Reach | 376 | 382 | 400 | 414 | 428 |
